Azure Entra ID Hybrid Sync

Step 1 — Find Entra ID in Azure Portal

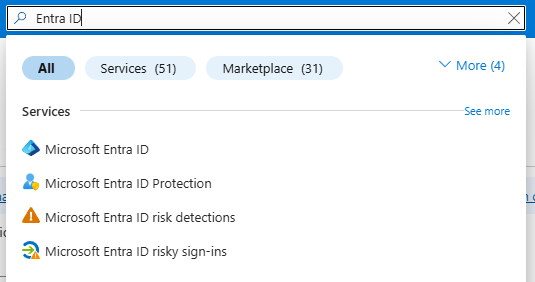

Logged into portal.azure.com and searched for "Microsoft Entra ID" in the top search bar.

Step 2 — Add Custom Domain

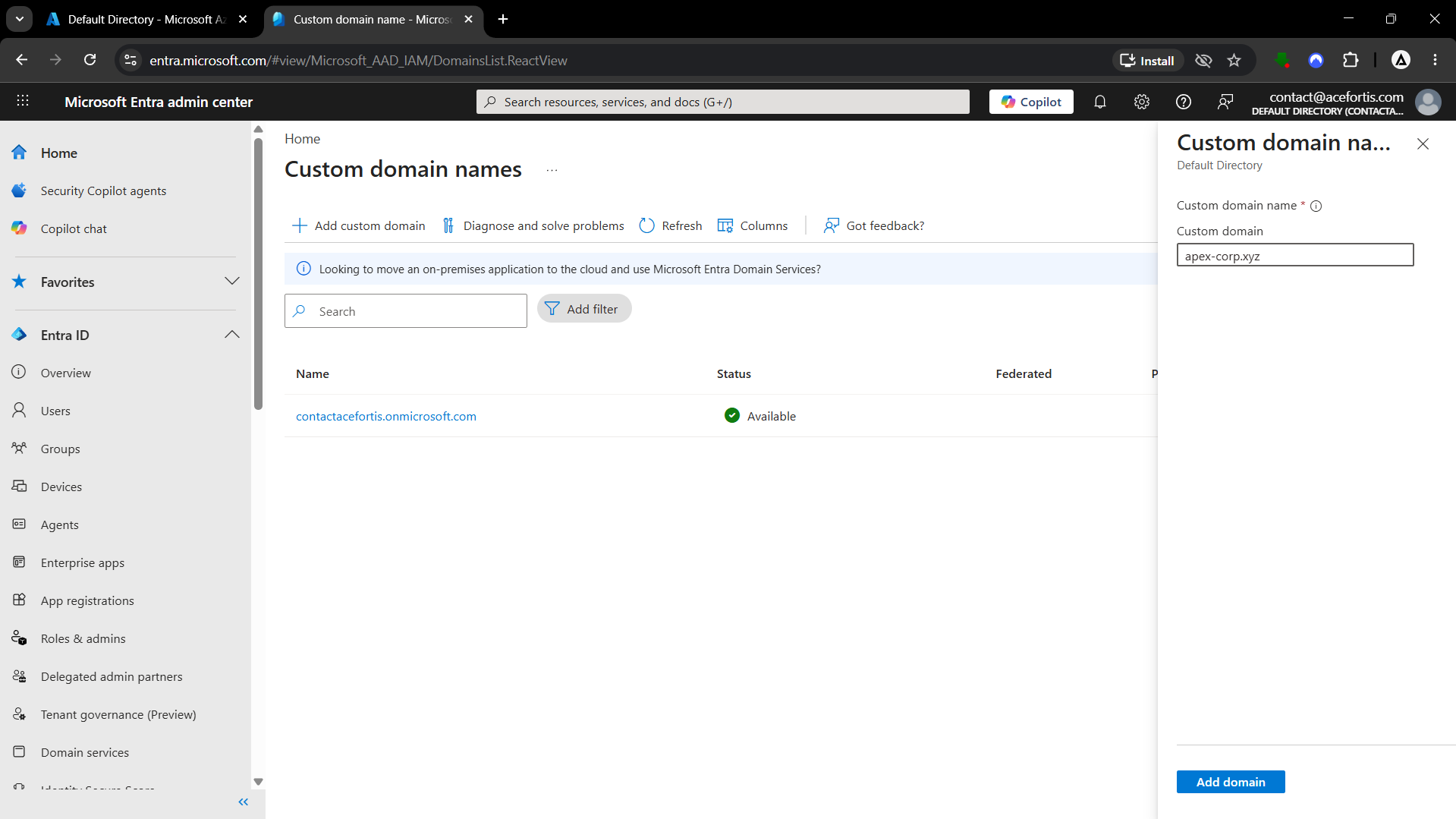

Inside the Entra Admin Center, went to Custom Domain Names → Add custom domain → typed apex-corp.xyz. Azure generated a TXT verification record. Added that TXT record in Cloudflare DNS, waited a few minutes, then clicked Verify in Azure. After verification, set apex-corp.xyz as the primary domain for the directory.

Step 3 — Download Microsoft Entra Connect

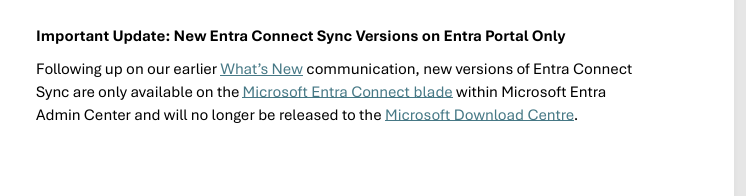

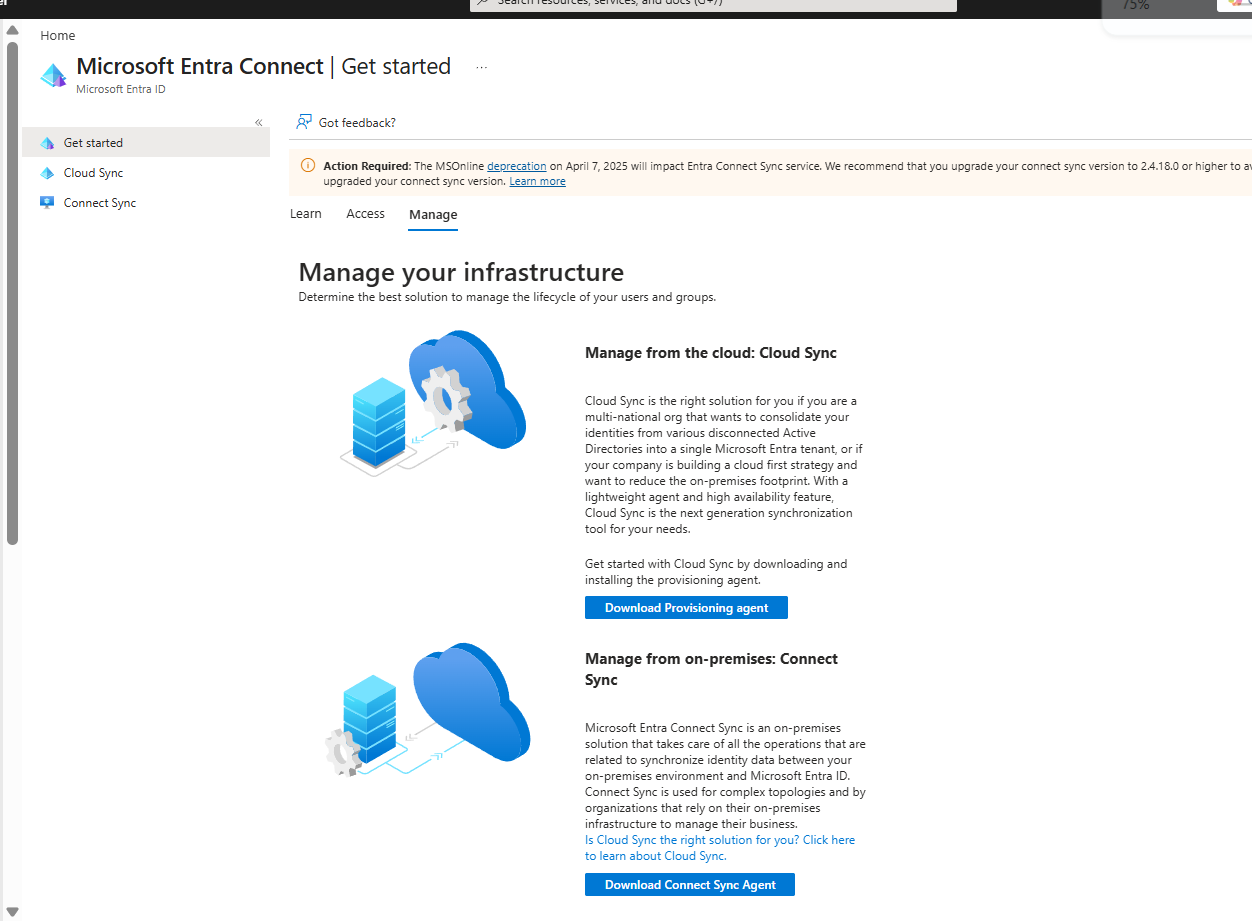

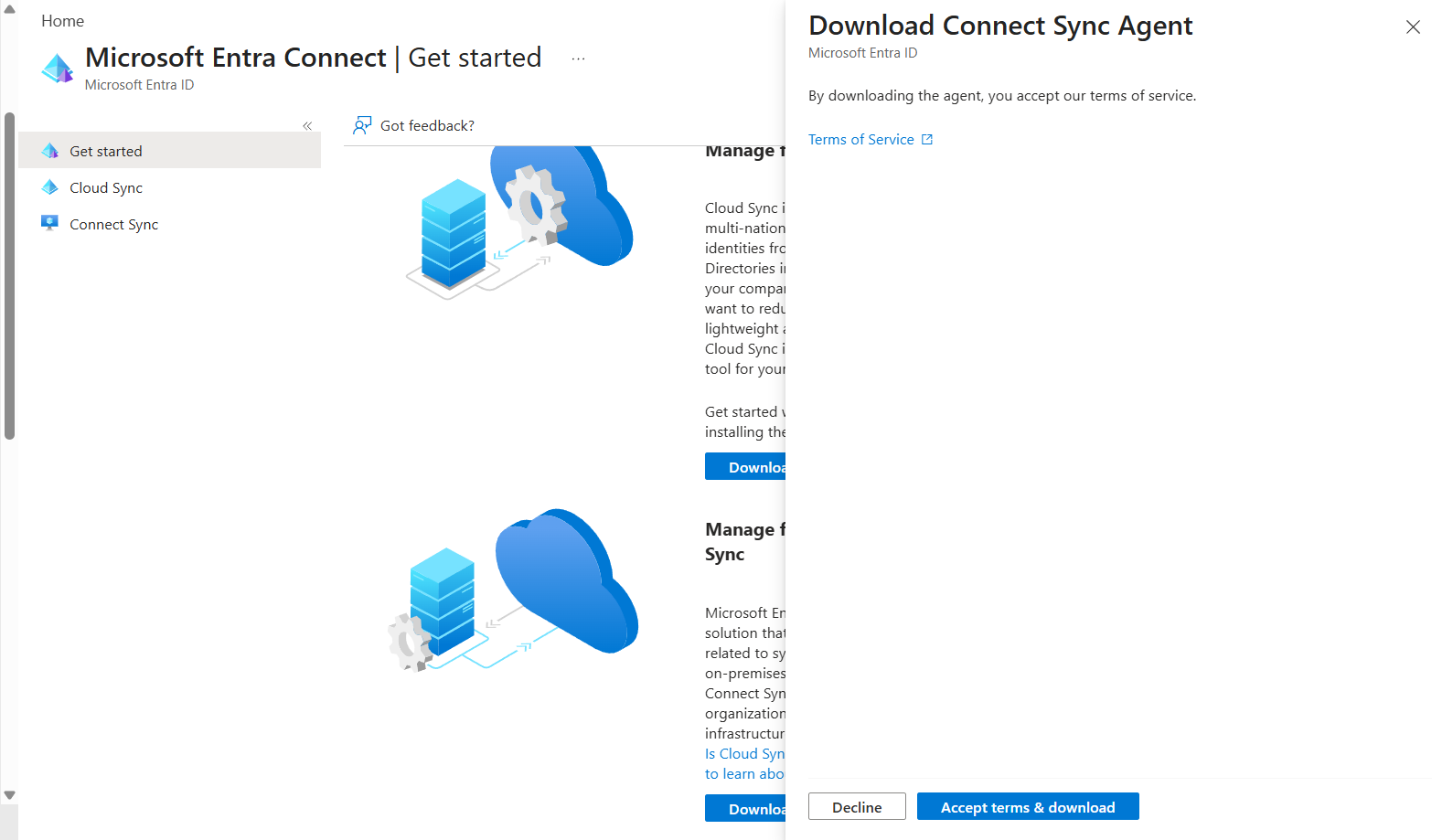

The installer is no longer available at the old Microsoft download links. Microsoft moved the download inside the Entra ID portal itself.

Step 4 — Install on DC01 (STARK-TOWER)

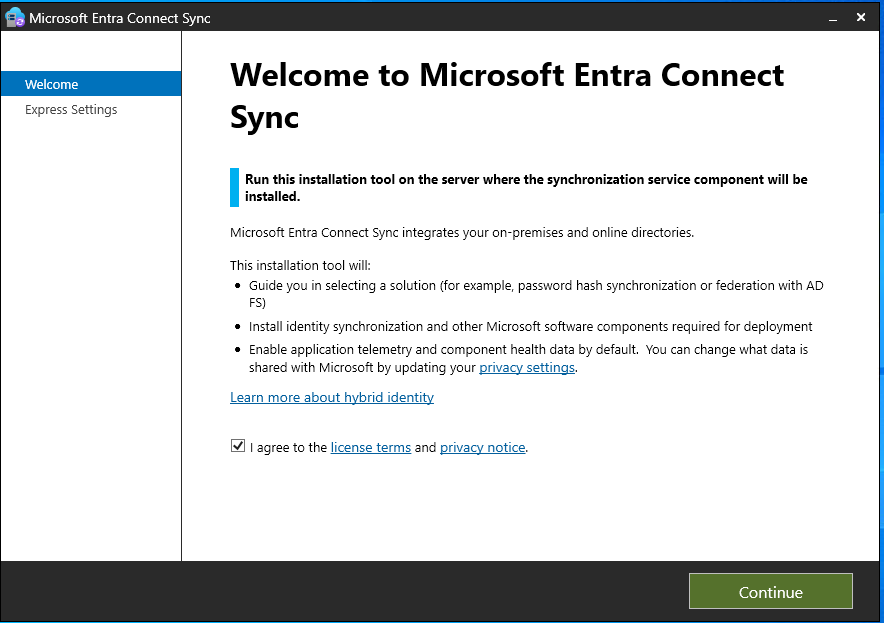

Copied the installer to DC01 and ran it as Administrator. The welcome screen appeared — clicked agree and continue.

Step 5 — The UPN Suffix Problem

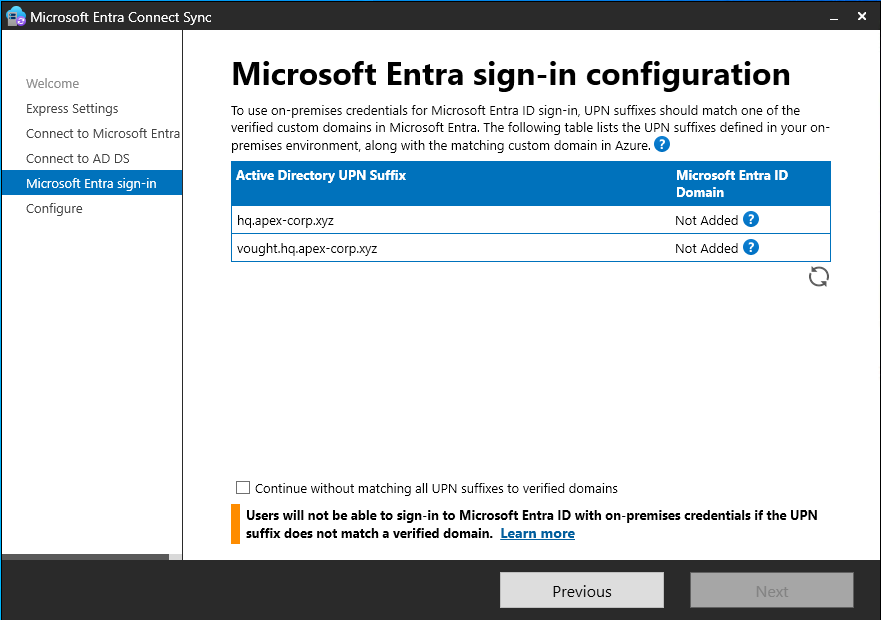

During Entra Connect setup, the sign-in configuration screen flagged a UPN suffix mismatch. The issue:

• Local AD users have UPNs like [email protected] or [email protected]
• Azure only has apex-corp.xyz verified as a custom domain
• Azure does not recognize @hq.apex-corp.xyz or @vought.hq.apex-corp.xyz as valid cloud domains
• Synced users fall back to getting a .onmicrosoft.com address instead

Step 6 — Fix: Add Alternative UPN Suffix

Two steps. First add the cloud domain as an Alternative UPN Suffix in local AD, then update every user's UPN to use it.

Step 6a — Add Alternative UPN Suffix in Local AD:

1. On DC01, open Active Directory Domains and Trusts from Server Manager Tools
2. Right-click the top node (Active Directory Domains and Trusts) → Properties
3. In the "Alternative UPN Suffixes" box, type apex-corp.xyz
4. Click Add → OK

Step 6b — Bulk update all user UPNs via PowerShell:

# Update every user in the domain to use the cloud domain UPN suffix
Get-ADUser -Filter * | ForEach-Object {
    $newUpn = $_.SamAccountName + "@apex-corp.xyz"
    Set-ADUser -Identity $_.SamAccountName -UserPrincipalName $newUpn
    Write-Host "Updated: $($_.SamAccountName) → $newUpn" -ForegroundColor Green
}

# Force immediate sync instead of waiting for the 30-minute schedule
Start-ADSyncSyncCycle -PolicyType Delta

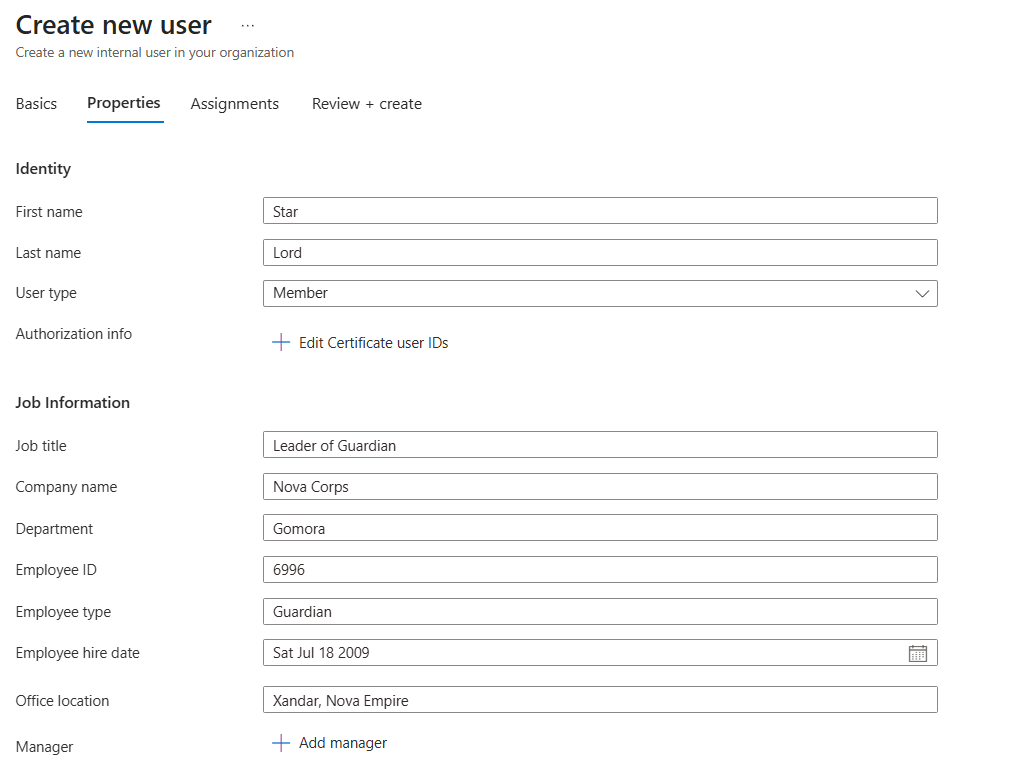

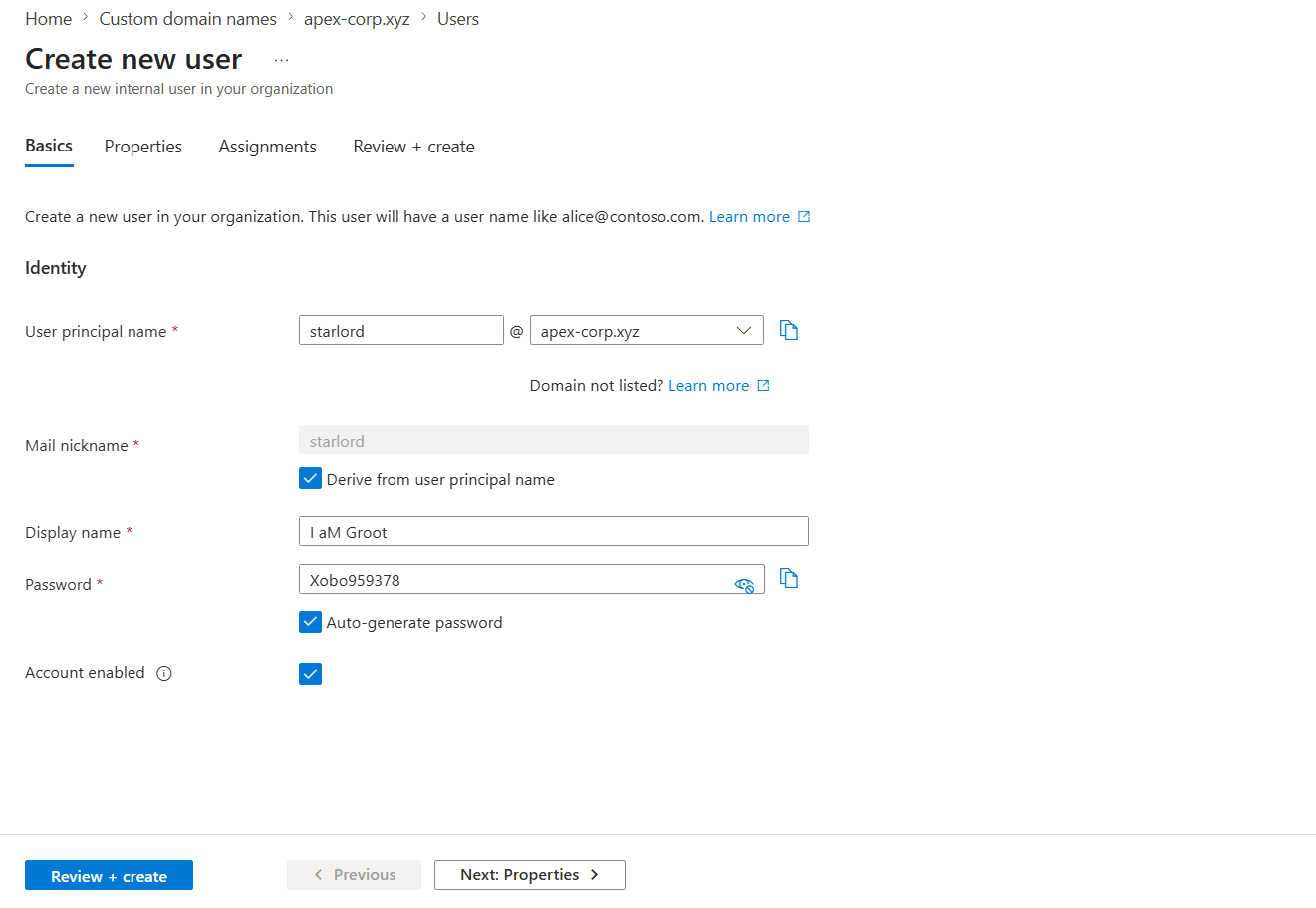

Step 7 — Create the Star Lord Admin Account

Created a cloud-only Global Admin account directly in Entra ID to use as the sync service account. Used Star Lord from Guardians of the Galaxy. This is the recommended practice — use a dedicated cloud account for syncing, not a personal one.

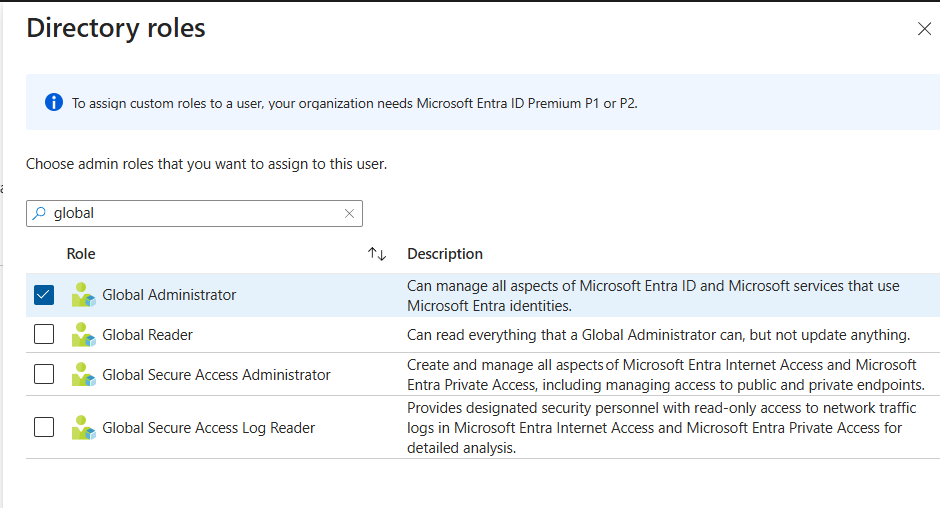

Gave Star Lord the Global Administrator role:

Step 8 — Connect Vultr AD to Entra ID

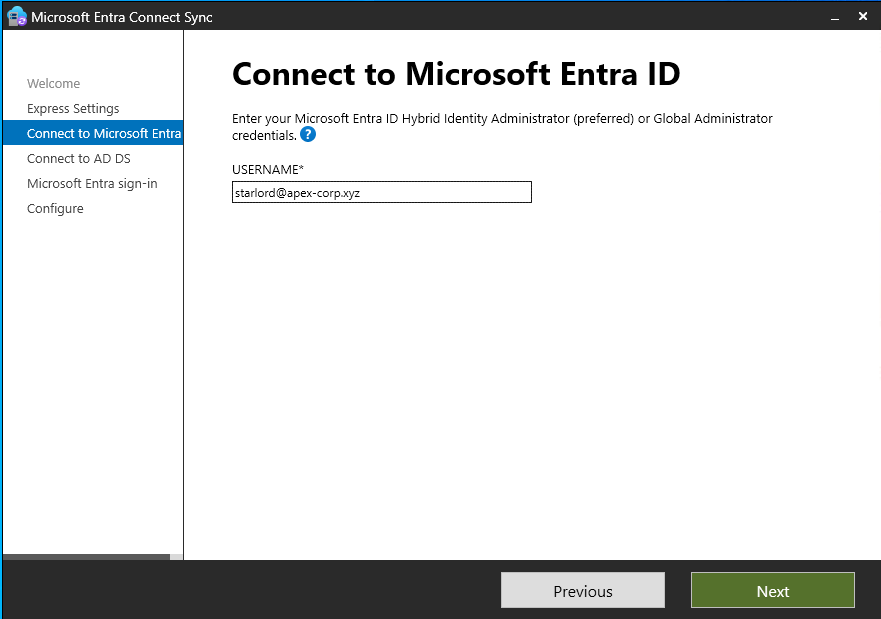

Ran the Entra Connect installer on DC01. Entered credentials on both screens:

• Microsoft Entra credentials: Star Lord's Global Administrator account
• Domain Admin credentials: HQ\t.stark

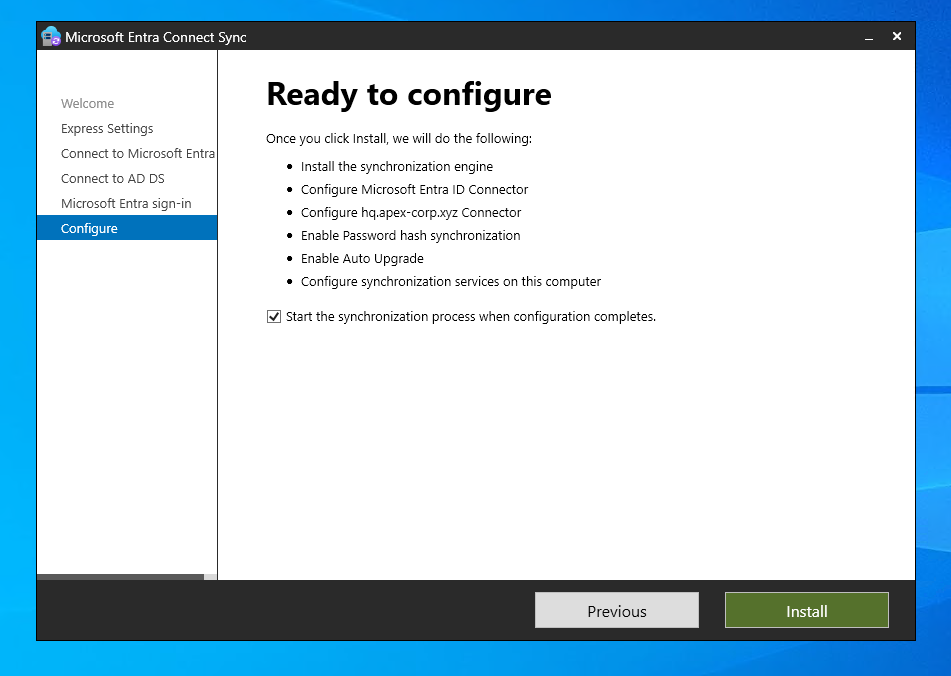

The "Ready to Configure" screen showed what it would do — install sync engine, configure password hash sync, and start the first sync:

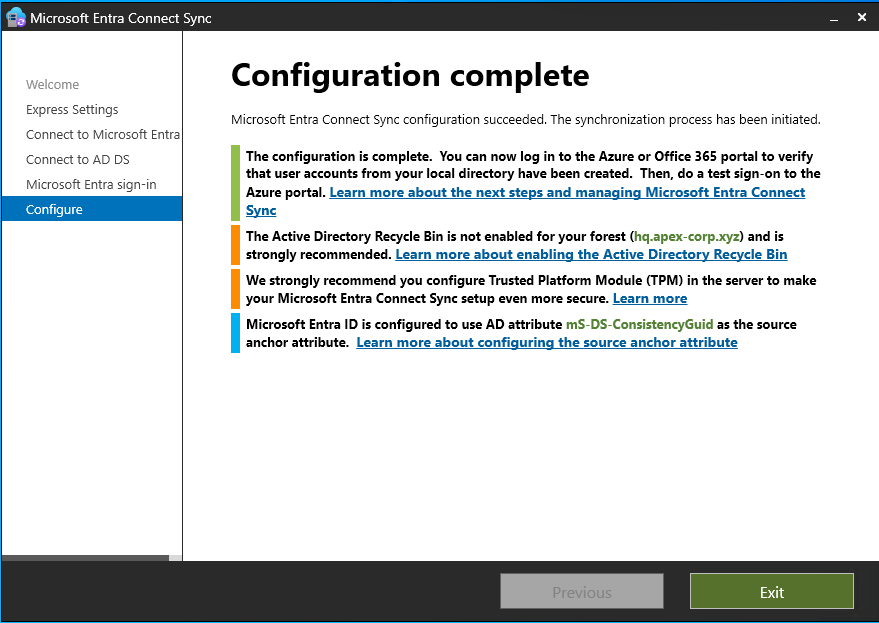

Clicked Install. Configuration completed successfully:

Step 9 — Verify the Sync

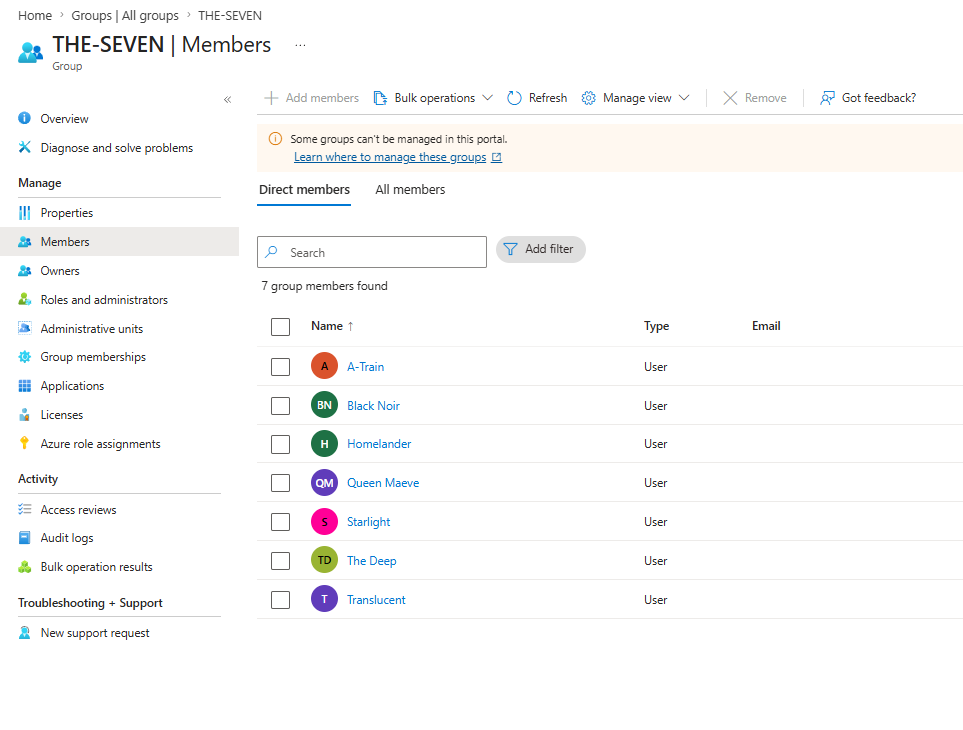

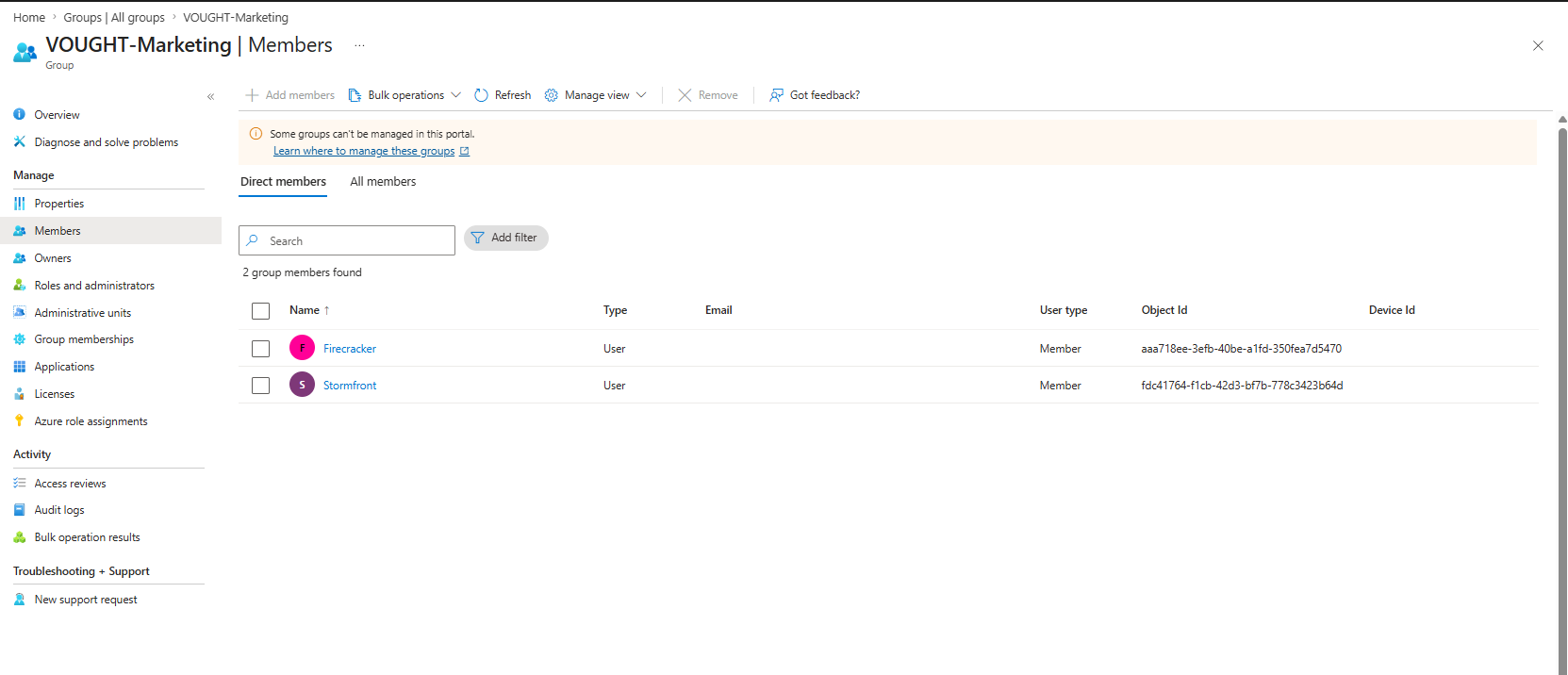

Went back to Azure portal. Under Groups, the local AD groups were now showing in Azure:

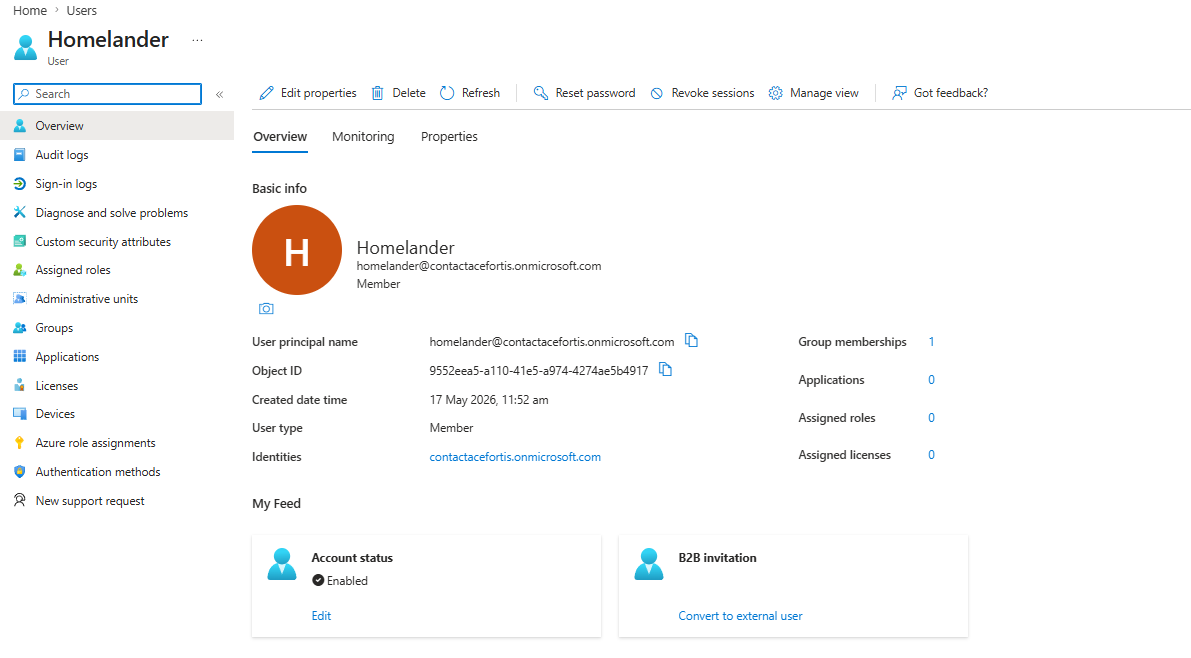

Opened Homelander's profile — all properties synced from local AD:

Step 10 — Test Cloud Login with Synced Accounts

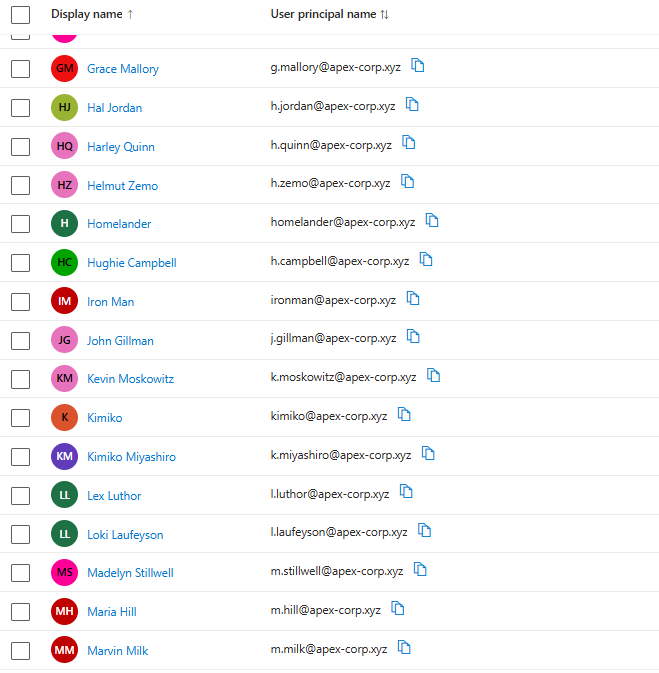

Before the UPN fix, users would show up with .onmicrosoft.com addresses. After running the bulk update script and forcing the sync:

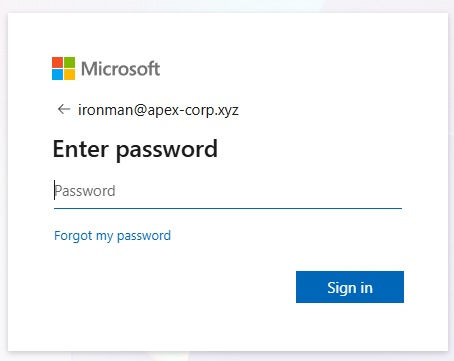

Test with Tony Stark (Iron Man): Typed [email protected] at the Microsoft login page — recognized the account and asked for the domain password.

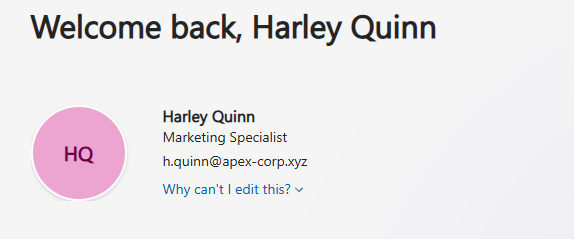

Test with Harley Quinn: Logged in with the marketing specialist account — worked correctly, session active.

Step 11 — Sign-In Logs

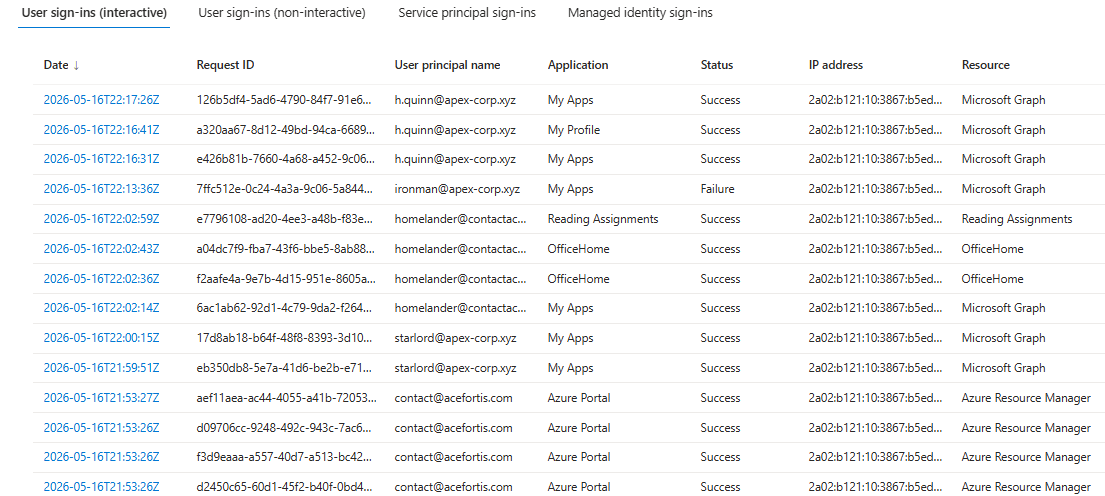

The sign-in log in Azure shows interactive login history — all test logins, what apps were accessed, success or failure. This is useful for the attack surface — it shows which accounts tried to log in and from where.

Step 12 — Vulnerable OAuth App Registration

Registered a fake application called "Apex IT Helpdesk" in Entra ID. This is used as a phishing target — an attacker would send victims a consent phishing email asking them to approve this app. When they click Accept, the attacker gets OAuth tokens granting access to the victim's mailbox and files — no password needed, no MFA required.

In Azure Portal → App Registrations → New Registration → Name: "Apex IT Helpdesk".

Added these API permissions and left them unconsented by an admin:
